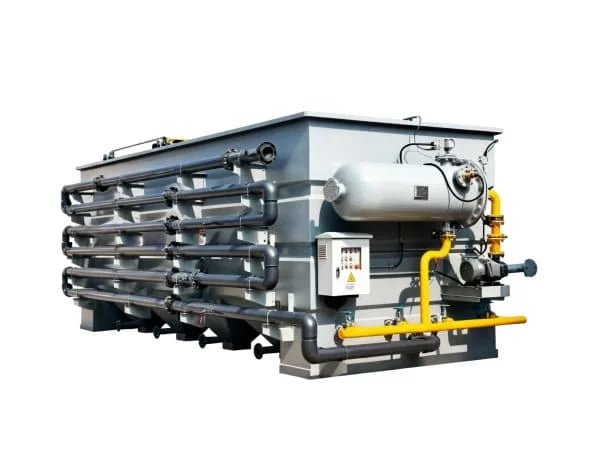

SJY High-Efficiency Dissolved Air Flotation (DAF) System utilizes micro-bubble technology to attach and float suspended solids, oils, grease, and colloids to the surface for easy removal. It features a high-pressure dissolved air pump and releaser for uniform bubble distribution. Ideal for pretreatment in food processing, oil & gas, textile, paper mills, slaughterhouses, and municipal wastewater to reduce TSS, COD, BOD, and FOG.

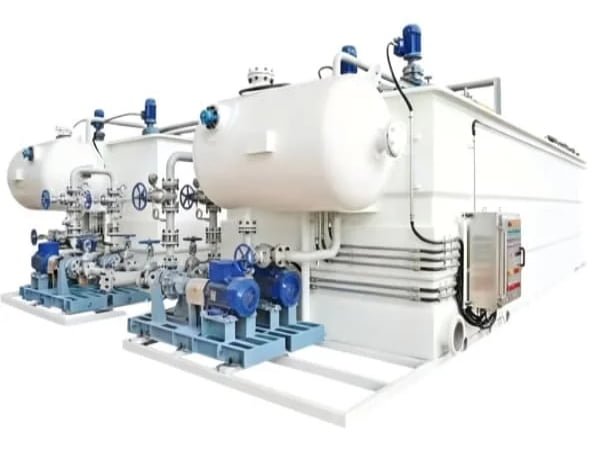

Dissolved Air Flotation (DAF) Unit is an efficient solid–liquid separation system that removes suspended solids and oils through microbubble flotation. Widely used for pretreatment, oil removal, water reuse, landscape water circulation, and phosphorus reduction. Effectively lowers SS, BOD, COD, and total phosphorus—ensuring stable and reliable operation of downstream processes.

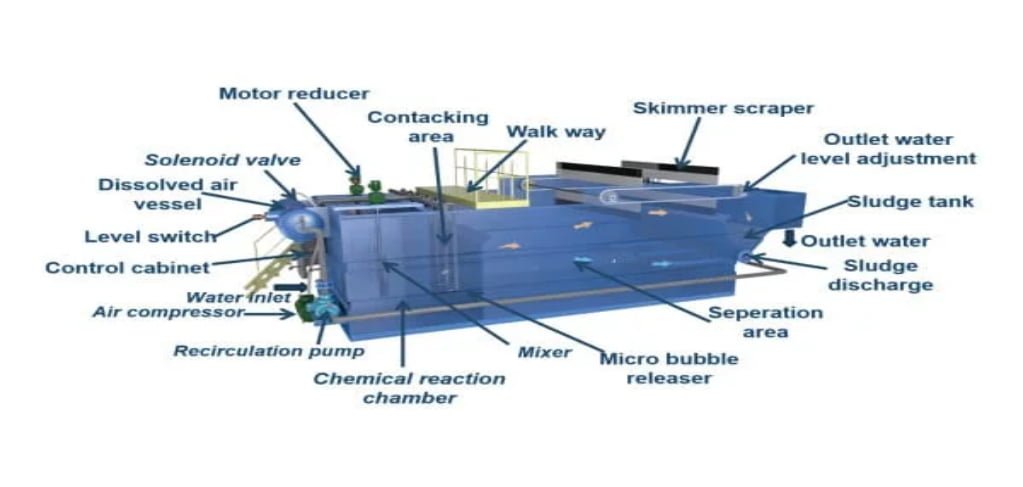

Main Structure
| Model | Capacity (m³/h) | Tank Dimensions (mm) | Operating Weight (kgs) | Total Power (kW) |
|---|---|---|---|---|
| SJYGF-1T | 0.5–1 | 1700*550*1100 | 1500 | 2.02 |
| SJYGF-2T | 1–2 | 2200*700*1300 | 2700 | 2.02 |
| SJYGF-3T | 2–3 | 3300*800*1900 | 6500 | 5.55 |
| SJYGF-5T | 3–5 | 3500*1000*1900 | 8500 | 5.55 |
| SJYGF-10T | 5–10 | 4500*1200*2100 | 13500 | 5.75 |
| SJYGF-15T | 10–15 | 5000*1500*2100 | 17500 | 7.8 |
| SJYGF-20T | 15–20 | 5000*1800*2100 | 20500 | 7.8 |
| SJYGF-30T | 20–30 | 6000*2000*2100 | 27000 | 7.8 |
| SJYGF-40T | 30–40 | 7000*2200*2100 | 34000 | 7.8 |
| SJYGF-50T | 40–50 | 7000*2700*2100 | 41000 | 10.55 |
| SJYGF-60T | 50–60 | 8000*2800*2100 | 48000 | 10.55 |
| SJYGF-70T | 60–70 | 9000*3000*2100 | 58000 | 15.85 |
| SJYGF-80T | 70–80 | 10000*3200*2100 | 70000 | 15.85 |
| SJYGF-100T | 80–100 | 10500*3600*2100 | 80000 | 19.85 |
| SJYGF-150T | 120–150 | 11000*3600*2500 | 90000 | 19.85 |
| SJYGF-200T | 180–200 | 12000*3600*2500 | 118000 | 28.65 |
Engineered for excellence with proven technology and superior performance standards.
ISO 9001 & CE certified materials from top-tier suppliers, exceeding national discharge standards.
Real-time monitoring, AI fault alerts, and automated controls for effortless remote management.
10+ year lifespan with minimal maintenance, ensuring long-term ROI and operational efficiency.
Optimized structure saves up to 30% space while maintaining superior performance capabilities.
Mature technology with consistent performance, reducing operational risks across applications.
Comprehensive technical support and maintenance services across 40+ countries worldwide.
