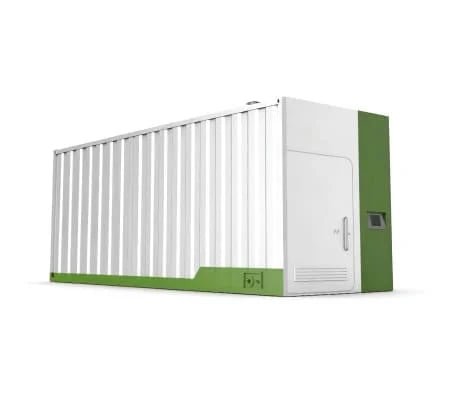

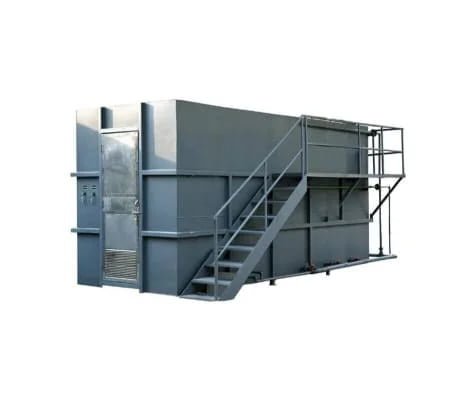

SJY Packaged Wastewater Treatment Plant is a compact, modular system integrating advanced biological processes like MBR (Membrane Bioreactor), MBBR (Moving Bed Biofilm Reactor), or SBR (Sequencing Batch Reactor). It treats municipal sewage, industrial wastewater from food, textile, chemical, and pharmaceutical sectors, producing effluent that meets or exceeds national discharge standards. The plant is pre-assembled in containers or skids for quick installation and minimal civil works.

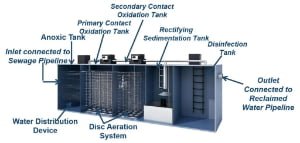

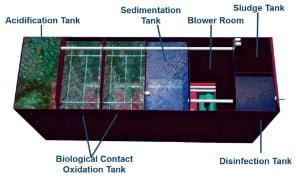

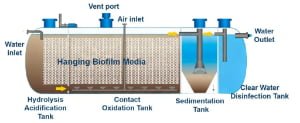

The integrated sewage treatment equipment adopts advanced biological treatment technology to efficiently remove BOD₅& COD. Compact & underground-installed, it saves land for landscaping or parking, is ideal for areas far from municipal treatment plants. Designed for domestic & similar organic wastewater, it uses a mature contact oxidation process to ensure stable effluent quality.
Main Types
| Model | Dimensions (mm) | Capacity (m³/h) | Power (kW) | Weight (t) | Material |
|---|---|---|---|---|---|
| SJY-0.5A | 2400×1800×2000 | 0.5 | 1.5 | 2.5 | FRP, Stainless Steel, Carbon Steel (optional) |
| SJY-1A | 4300×2000×2000 | 1 | 4 | 4.5 | |
| SJY-3A | 7300×2000×2000 | 3 | 7 | 6 | |
| SJY-5A | 9000×2200×2800 | 5 | 9 | 9 | |
| SJY-10A | 9000×4900×2800 | 10 | 12 | 13 | |
| SJY-0.5B | 3200×1800×2000 | 0.5 | 1 | 2.9 | |
| SJY-1B | 5200×2000×2000 | 1 | 4 | 5.6 | |
| SJY-3B | 7300×2200×2800 | 3 | 6 | 7.4 | |
| SJY-5B | 12000×2200×2800 | 5 | 8 | 11 | |
| SJY-10B | 12000×4900×2800 | 10 | 10 | 16 |
Engineered for excellence with proven technology and superior performance standards.
ISO 9001 & CE certified materials from top-tier suppliers, exceeding national discharge standards.
Real-time monitoring, AI fault alerts, and automated controls for effortless remote management.
10+ year lifespan with minimal maintenance, ensuring long-term ROI and operational efficiency.
Optimized structure saves up to 30% space while maintaining superior performance capabilities.
Mature technology with consistent performance, reducing operational risks across applications.
Comprehensive technical support and maintenance services across 40+ countries worldwide.
Factory-built for easy transport and setup, they merge pumps, structures, controls, and remote monitoring—cutting site work by 70% and skipping…
