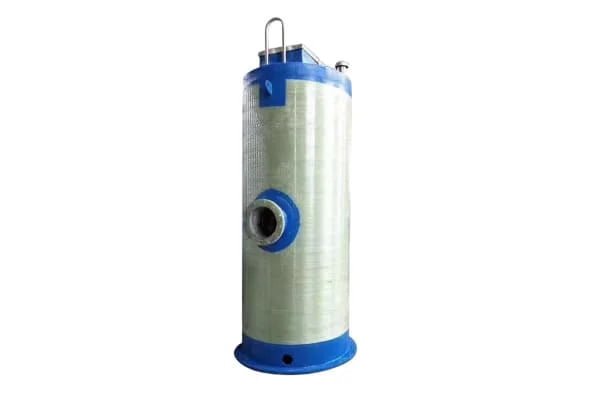

SJY Integrated Pump Station

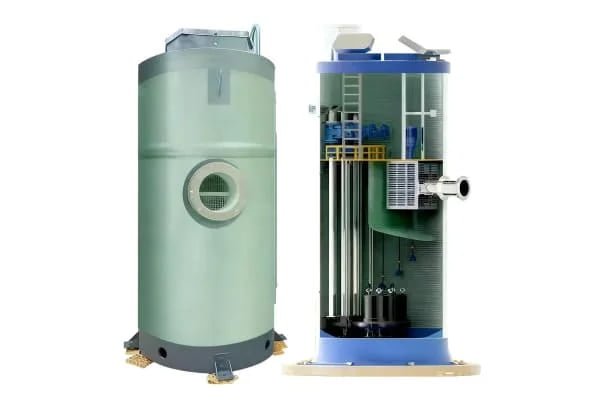

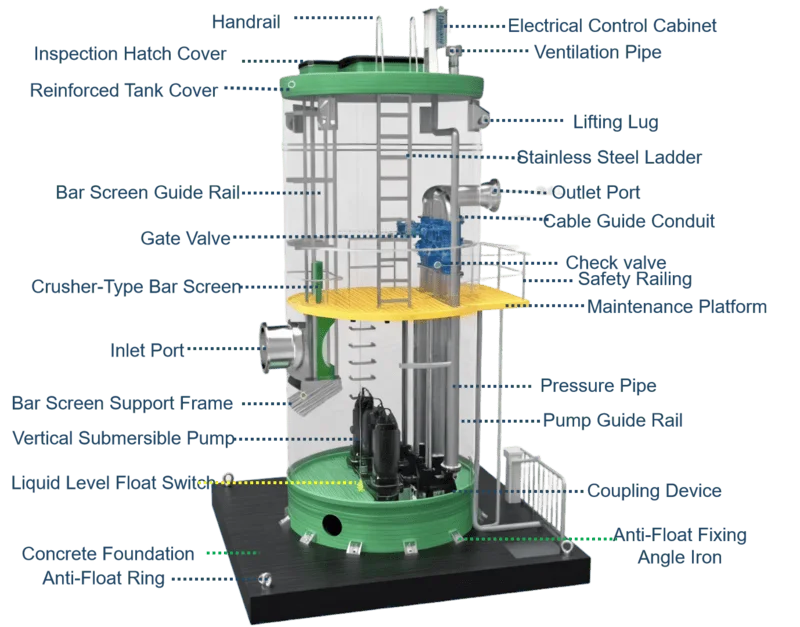

SJY Prefabricated Integrated Pump Station is a complete, ready-to-install system for lifting sewage, wastewater, or stormwater. It integrates submersible pumps (Grundfos/Wilo brands), GRP/SS cylinder, valves, level sensors, and control panel in one unit. Ideal for municipal drainage, residential areas, industrial parks, highways, and flood control where gravity flow is insufficient.

View Details
Product Details

Technical Specifications & Parameters

Factory-built for easy transport and setup, they merge pumps, structures, controls, and remote monitoring—cutting site work by 70% and skipping weather woes. Anti-buoyancy concrete hides underground, preserving green spaces without eyesores. Tough against pressure and floods,cost-effective solutions that turn scarce resources into reliable flows.

Product Details

Key Functional Highlights of the Pump Station

1.Tough Build: 304 stainless steel enclosure—outdoor-ready, rain-, dust-, & theft-proof for dusty steppes or stormy sites.

2.Smart Pump Sync: Auto-parallel control for seamless manual/auto start/stop; high-level auto-drain kicks in fast to beat overflows.

3.Custom Levels: Dial in any start/stop heights—flexible for variable rains or irrigation spikes.

4.Real-Time Dash: Tracks inflow vs. outflow—spot issues early, no guesswork.

5.Anti-Clog Magic: Timed auto-empty flushes silt; rotating duty cycles balance multi-pump wear for longer life.

6.Storm-Proof Power: Lightning surge protection + UPS backup—uninterrupted in blackouts or thunder.

7.Remote Eyes: RS485/GPRS-GSM link to SCADA platform—monitor levels, faults, and flows from your phone, anywhere in the region.

8.Easy-Peasy Interface: Intuitive HMI with graphic system views—reads levels, speeds, faults, flows, and power use at a glance.

9.Reliable, low-fuss wins for your water battles—deploy and forget the headaches!

Specification Sheet

Inlet Flow Rate (m³/h) Cylinder Dia (mm) Cylinder Height (m) Number of Pumps(set) Inlet Pipe Dia(mm) Outlet Pipe Dia (mm)
50 Φ1000 10 2 DN100-300 DN80-100
100 Φ1200 12 2 DN100-300 DN80-150
150 Φ1400 12 2 DN200-400 DN100-200
200 Φ1600 12 2/3 DN200-500 DN100-200
400 Φ2000 16 2/3 DN300-600 DN150-300
1200 Φ2500 16 2/3 DN400-600 DN150-300
2000 Φ3000 16 2/3 DN400-800 DN200-400
2500 Φ3500 16 2/3 DN600-1000 DN300-500
4800 Φ3800 16 2/3 DN600-1200 DN400-700

Application Industries

Municipal Engineering

Municipal Engineering

Highways

Highways

Green Belts

Green Belts

Landscaped Gardens

Landscaped Gardens

Parking Lots

Parking Lots

Public Plazas

Public Plazas

Why Choose This Solution

Engineered for excellence with proven technology and superior performance standards.

Premium Quality

ISO 9001 & CE certified materials from top-tier suppliers, exceeding national discharge standards.

Smart Technology

Real-time monitoring, AI fault alerts, and automated controls for effortless remote management.

Cost-Effective

10+ year lifespan with minimal maintenance, ensuring long-term ROI and operational efficiency.

Compact Design

Optimized structure saves up to 30% space while maintaining superior performance capabilities.

Proven Stability

Mature technology with consistent performance, reducing operational risks across applications.

Global Support

Comprehensive technical support and maintenance services across 40+ countries worldwide.

Related Solutions

Explore More Products

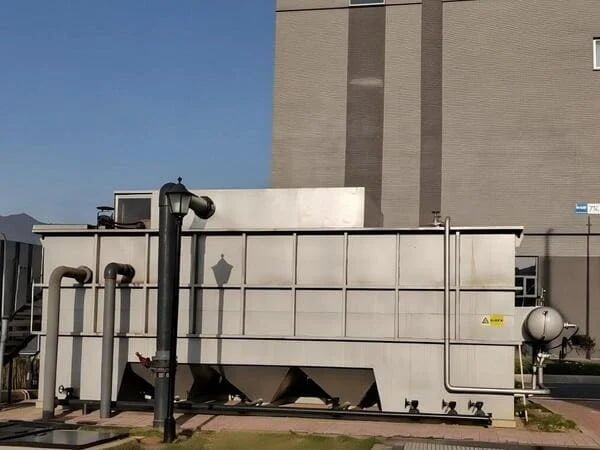

SJY High-Efficiency Dissolved  Air Flotation Unit(DAF System)
High-Efficiency Dissolved Air Flotation Unit(DAF System)

SJY High-Efficiency Dissolved Air Flotation Unit(DAF System)

Dissolved Air Flotation (DAF) Unit is an efficient solid–liquid separation system that removes suspended solids and oils through microbubble flotation.…

Learn More
SJY Biological Deodorization Equipment
Biological Deodorization Equipment

SJY Biological Deodorization Equipment

SJY High-Efficiency Microbial Deodorizer: Harnesses microbial metabolism to rapidly degrade foul gases like H2S and NH3—turning stench into clean air…

Learn More

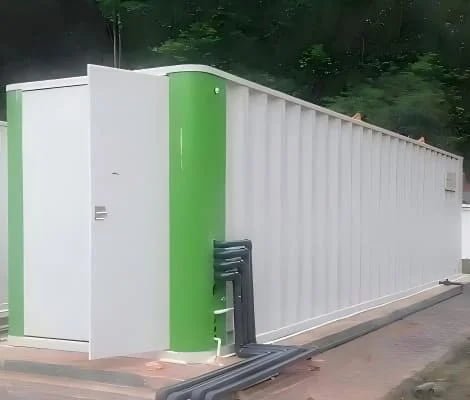

SJY Packaged Wastewater Treatment Plant
